A   comprehensive   system   for   the   investigation of   intact   muscle   strips   (skeletal   muscle,   heart papillary     muscle,     trabeculae     or     smooth muscle strips)
Basic     functions     and     specifications     of     the MUSCLE-STATION-INTACT        system        are presented in the movie

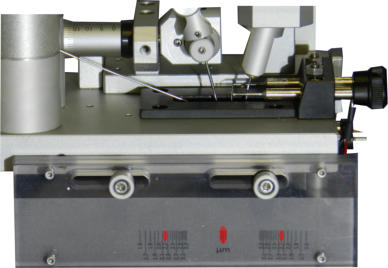

MUSCLE-STATION-INTACT
The diffraction pattern is on the screen converted into ┬Ám sarcomere length
Electrical stimulation:
Upgrade laser diffraction:

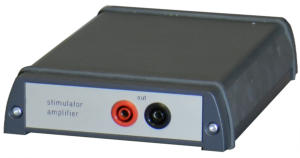

The electrical stimulation is accomplished by the STIMULATOR AMPLIFIER. The instrument is controlled by the software MYODAT. More details are presented in the movie
Manual for the Instrument
